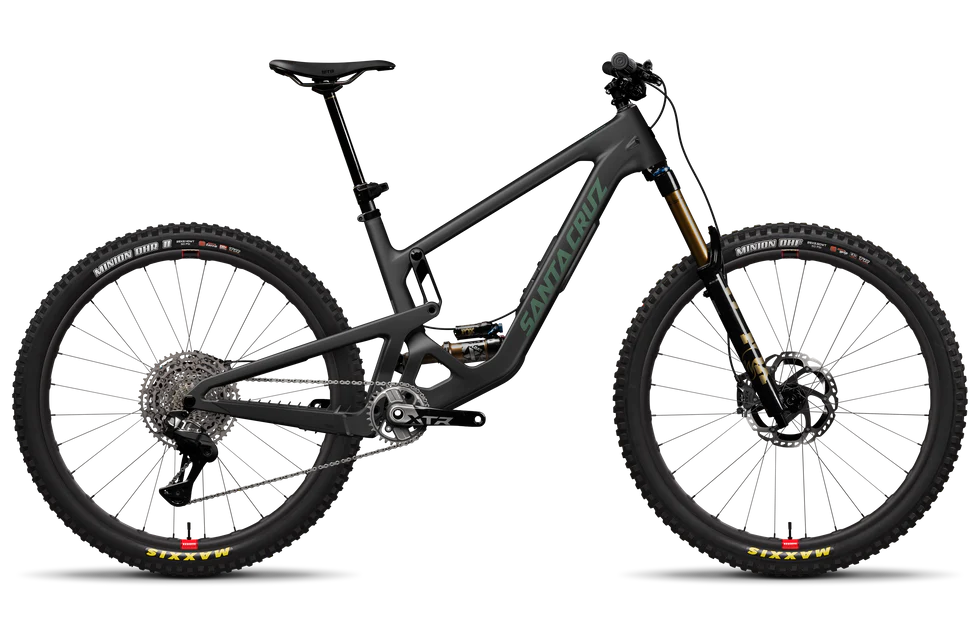

Santa Cruz Hightower XTR RSV

Regular price $18,999.00

Big on wheels, short on fuss, this is the pinnacle of go-anywhere-anytime bikes. A balance of travel, wheel size and attitude makes this a true MTB for modern mountain biking...

Colour: Matte Black
Size
Description

Big on wheels, short on fuss, this is the pinnacle of go-anywhere-anytime bikes. A balance of travel, wheel size and attitude makes this a true MTB for modern mountain biking. Whether that includes the rarefied air of the alpine or just local trailheads, built and burly trails or sublime natural singletrack, the Hightower is an all-terrain thriller.

  • Carbon CC Frame
  • FOX 36 Float Factory Fork
  • FOX Float X Factory Shock
  • Shimano XTR Di2 M9250 Drivetrain
  • Reserve 30|HD Carbon Wheels
Technical Specifications

Frame

Material

Carbon CC

Frame

Carbon CC
29" 150mm Travel VPP™

Travel

150mm

Weight

31.95lbs
/ 14.49kg

Wheel Size

29"

Suspension

Fork

FOX 36
Float Factory, Grip X2, 160mm

Shock

FOX Float
X Factory, 230x57.5

Drivetrain

Bottom Bracket

Shimano
XTR Threaded

Cassette

Shimano
XTR 9200, 10-51t

Chain

Shimano
XTR 9100, 12spd

Chainguide

N/A

Crankset

Shimano
XTR M9220, 32t All Sizes: 170mm

Rear Derailleur

Shimano
XTR Di2 M9250, SGS, 12spd

Right Shifter

Shimano
XTR M9250 Shift Switch

Brakes

Brakes

Shimano
XTR 9220

Front Rotor

Shimano
MT905, 203mm

Rear Rotor

Shimano
MT905, 180mm

Cockpit

Grips / Bar Tape

Santa
Cruz Bicycles House Grips

Handlebars

Santa
Cruz Carbon Bar S: 35x800mm, 20mm Rise, M/L/XL/XXL: 35x800mm, 35mm Rise

Headset

Chris
King DropSet 3 Integrated Headset

Saddle

WTB
Silverado Medium Fusion, Stainless

Seatpost

RockShox
Reverb AXS S: 150mm, M: 175mm, L/XL: 200, XXL: 225mm

Stem

Industry
Nine A35 All Sizes: 40mm

Wheels

Front Rim

Reserve
30|HD Carbon

Front Hub

Industry
Nine Hydra 2, 15x110, 6-Bolt 28h

Front Tire

Maxxis
Minion DHF 29"x2.5", 3C MaxxGrip, EXO

Rear Rim

Reserve
30|HD Carbon

Rear Hub

Industry
Nine Hydra 2, 12x148, MicroSpline, 6-Bolt 28h

Rear Tire

Maxxis
Minion DHR II 29"x2.4", 3C MaxxTerra, EXO+

Valves

Reserve
Fillmore Valves

Specs

Bottom Bracket Shell

Threaded
73mm

Rear Brake Mount

180mm PM

Chainguide Standard

ISCG05

Shock Length

230mm

Fork Axle to Crown

571mm

Fork Offset

44mm

Front Derailleur Mount

None

Headset

Integrated
(IS41/52)

Max Chainring Size

36t

Max Rotor Size

220mm

Max Tire Clearance

May vary according to tire and rim model

2.5"

Rear Spacing

148mm

Rear Travel

150mm

Recommended Sag

30%

Seat Clamp Diameter

36.4mm

Shock Mounting Hardware Lower

30x8

Shock Mounting Hardware Upper

40x10

Shock Stroke

57.5mm

Suspension System

VPP

UDH Compatible

Yes

Water Bottle Mounts

1
