Santa Cruz Bronson 70

Regular price $9,999.00

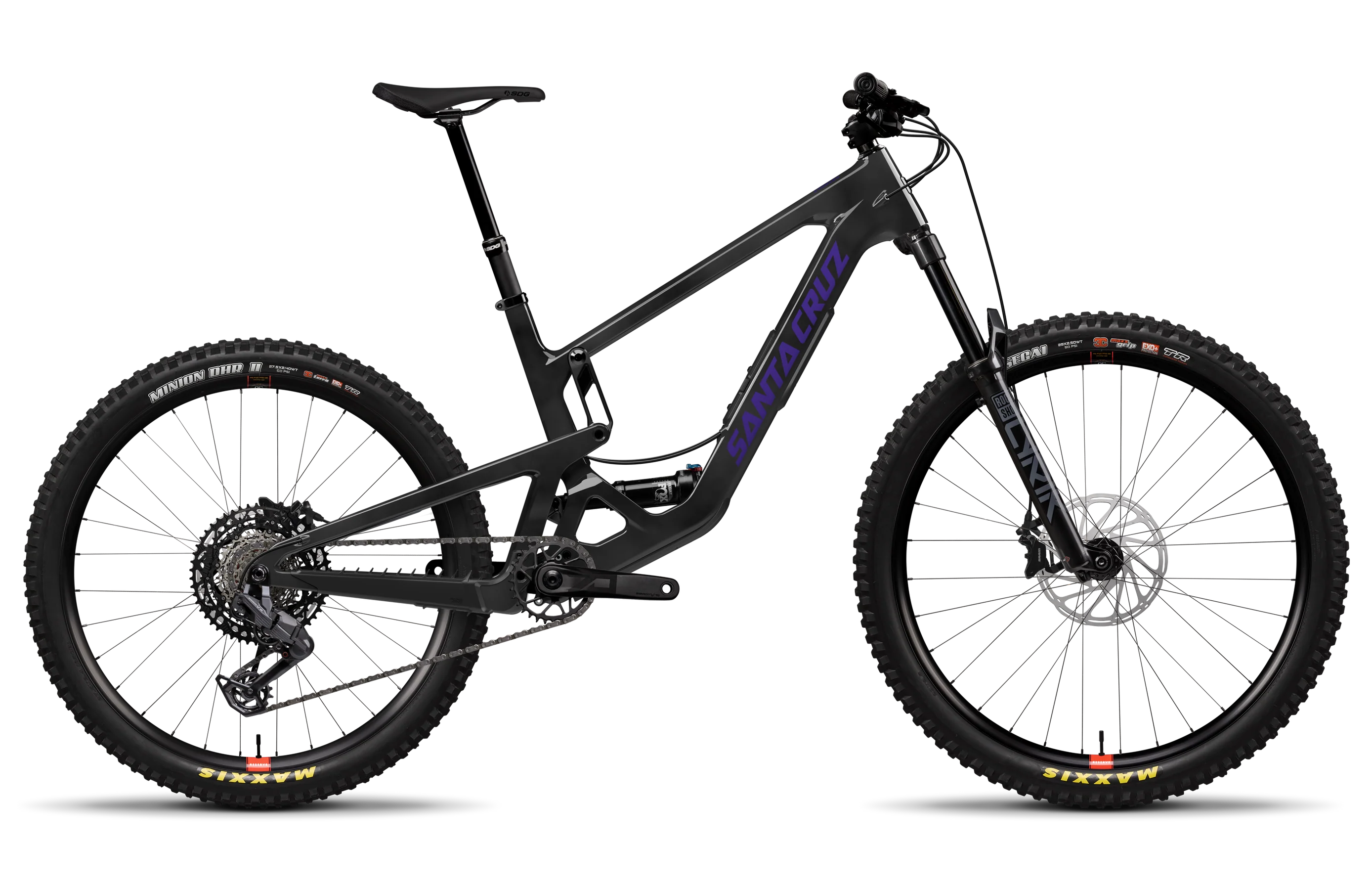

Colour: Gloss Carbon
Size
Description

When you can only have one bike, and your mission is to ride that bike into oblivion, then this is the one. From manicured bike parks to blown out loamy berms, alpine lines to backyard trails, the Bronson is as at home in the air as it is in the dirt. For the rider with a Peter Pan disposition or who wants to get into a pan flat tabletop position, the Bronson encourages bad behavior.

  • RockShox Lyrik Base Fork
  • FOX Float Rhythm Shock
  • SRAM 70 Eagle T-Type Drivetrain
Technical Specifications

Frame

Material

Carbon C

Frame

Carbon C
MX 150mm Travel VPP™

Travel

150mm

Weight

34.79lbs
/ 15.78kg

Wheel Size

MX

Suspension

Fork

RockShox
Lyrik Base, 160mm

Shock

FOX Float
Rhythm, 230x57.5

Drivetrain

Bottom Bracket

SRAM DUB
73mm MTB Wide BB

Cassette

SRAM XS
1270 Eagle T-Type, 10-52t

Chain

SRAM 70
Eagle T-Type, Flattop, 12spd

Chainguide

N/A

Crankset

SRAM 70
Eagle DUB T-Type Crankset, 32t All Sizes: 170mm

Rear Derailleur

SRAM 70
Eagle T-Type, 12spd

Right Shifter

SRAM 90
Eagle T-Type, 12spd

Brakes

Brakes

SRAM DB8

Front Rotor

SRAM
Centerline, 200mm

Rear Rotor

SRAM
Centerline, 200mm

Cockpit

Grips / Bar Tape

Santa
Cruz Bicycles House Grips

Handlebars

Burgtec
Alloy Bar S: 35x760mm, 20mm Rise, M/L/XL/XXL: 35x800mm, 30mm Rise -or- e13
TRS Base Bar S: 35x760mm, 20mm Rise, M/L/XL/XXL: 35x800mm, 35mm Rise

Headset

Cane
Creek 10 IS Integrated Headset

Saddle

SDG
Bel-Air V3, Steel

Seatpost

SDG
Tellis Dropper, 31.6 S: 125mm, M: 150, L: 170mm, XL/XXL: 200mm

Stem

OneUp
Enduro Stem All Sizes: 42mm -or- e13 TRS Base Stem All Sizes: 40mm

Wheels

Front Rim

Reserve
30|TR AL

Front Hub

SRAM MTH
716, 15x110, 6-Bolt, 32h

Front Tire

Maxxis
Assegai 29"x2.5", 3C MaxxGrip, EXO+

Rear Rim

Reserve
30|TR AL

Rear Hub

SRAM MTH
746, 12x148, HG, 6-Bolt, 32h

Rear Tire

Maxxis
Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+

Valves

Reserve
Fillmore Valves

Specs

Bottom Bracket Shell

Threaded
73mm

Rear Brake Mount

180mm PM

Chainguide Standard

ISCG05

Shock Length

230mm

Fork Axle to Crown

571mm

Fork Offset

44mm

Front Derailleur Mount

None

Headset

Integrated
(IS41/52)

Max Chainring Size

36t

Max Rotor Size

220mm

Max Tire Clearance

May vary according to tire and rim model

2.5"

Rear Spacing

148mm

Rear Travel

150mm

Recommended Sag

30%

Seat Clamp Diameter

36.4mm

Shock Mounting Hardware Lower

30x8

Shock Mounting Hardware Upper

40x10

Shock Stroke

57.5mm

Suspension System

VPP

UDH Compatible

Yes

Water Bottle Mounts

1
