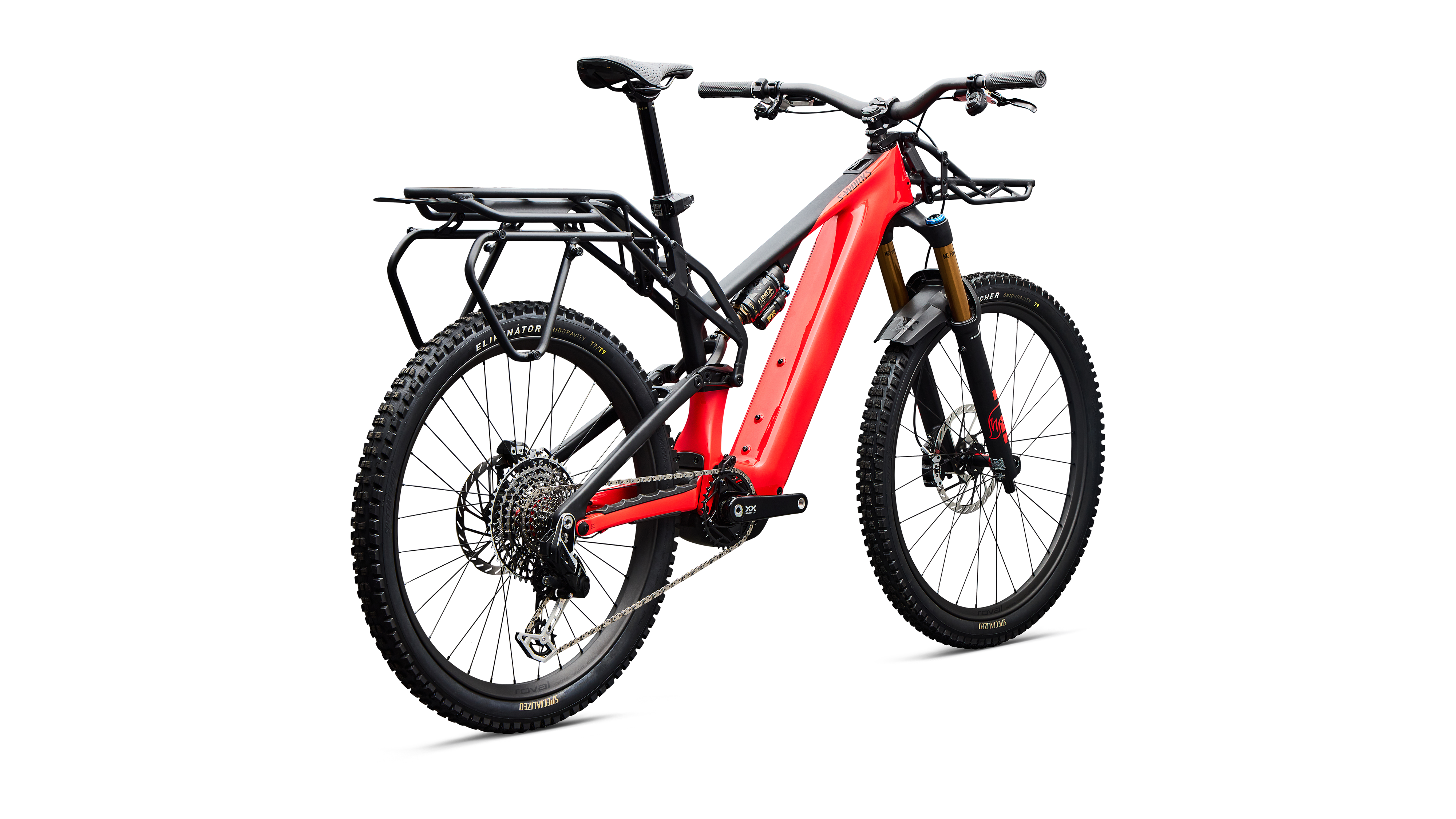

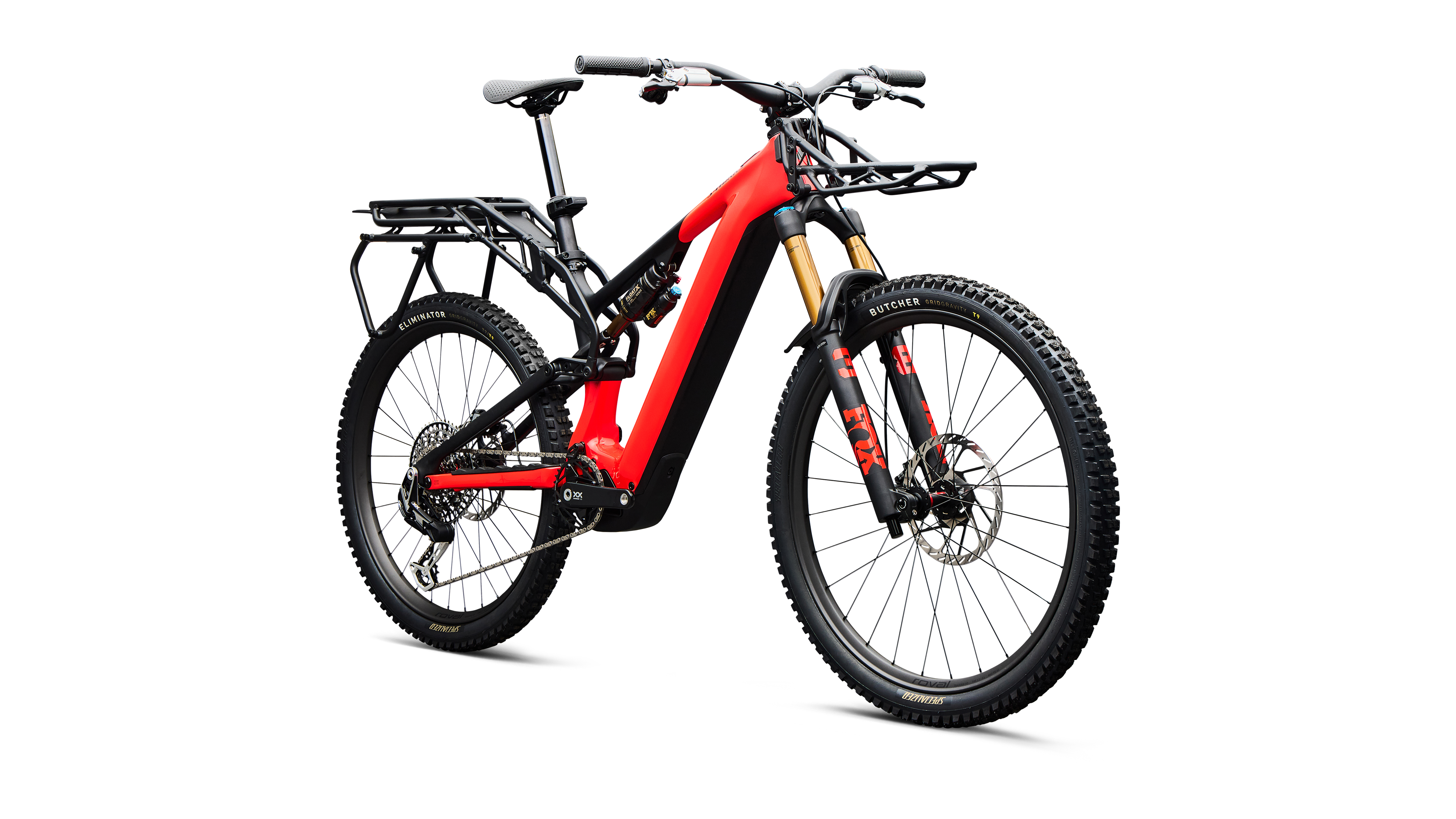

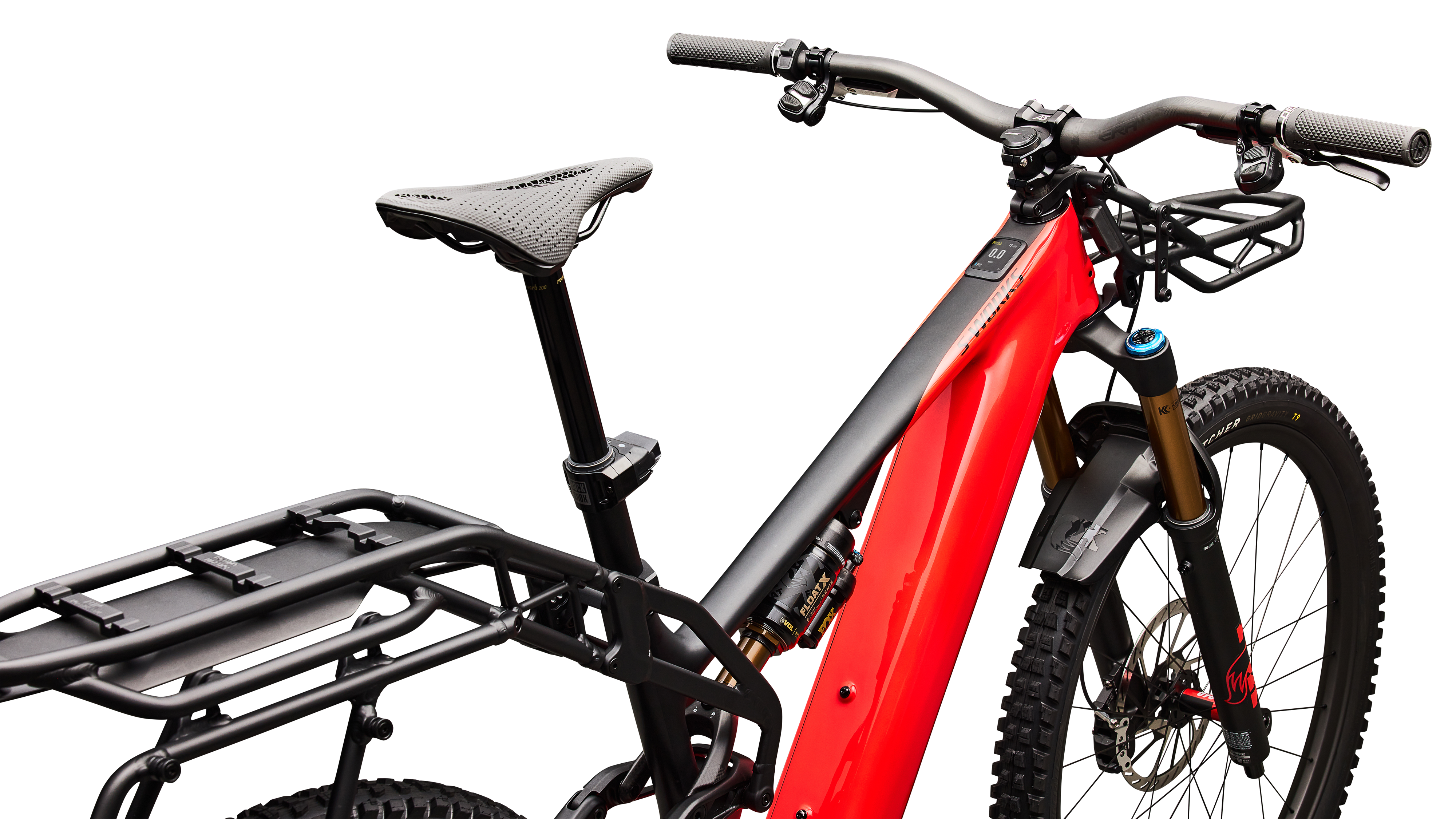

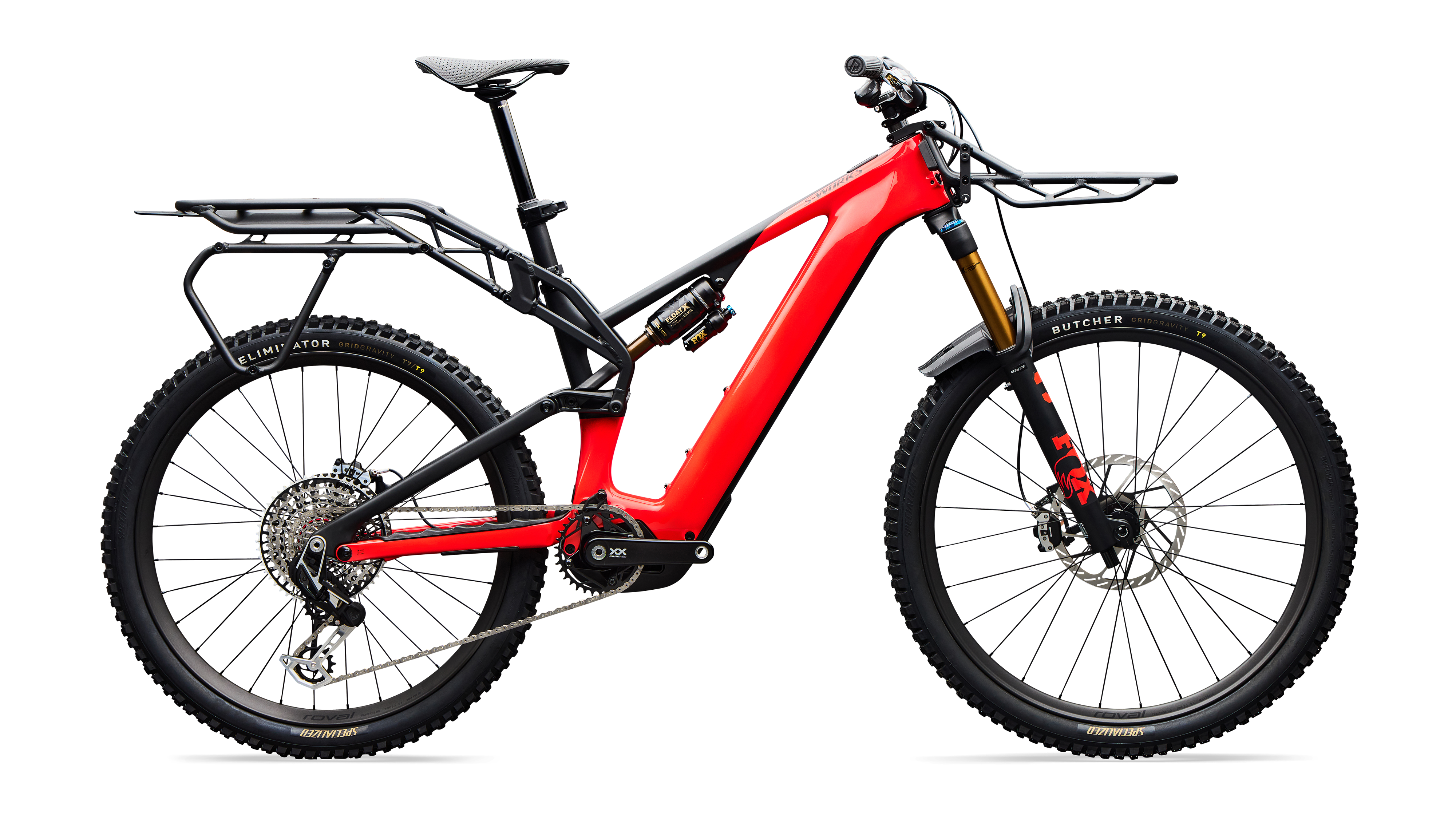

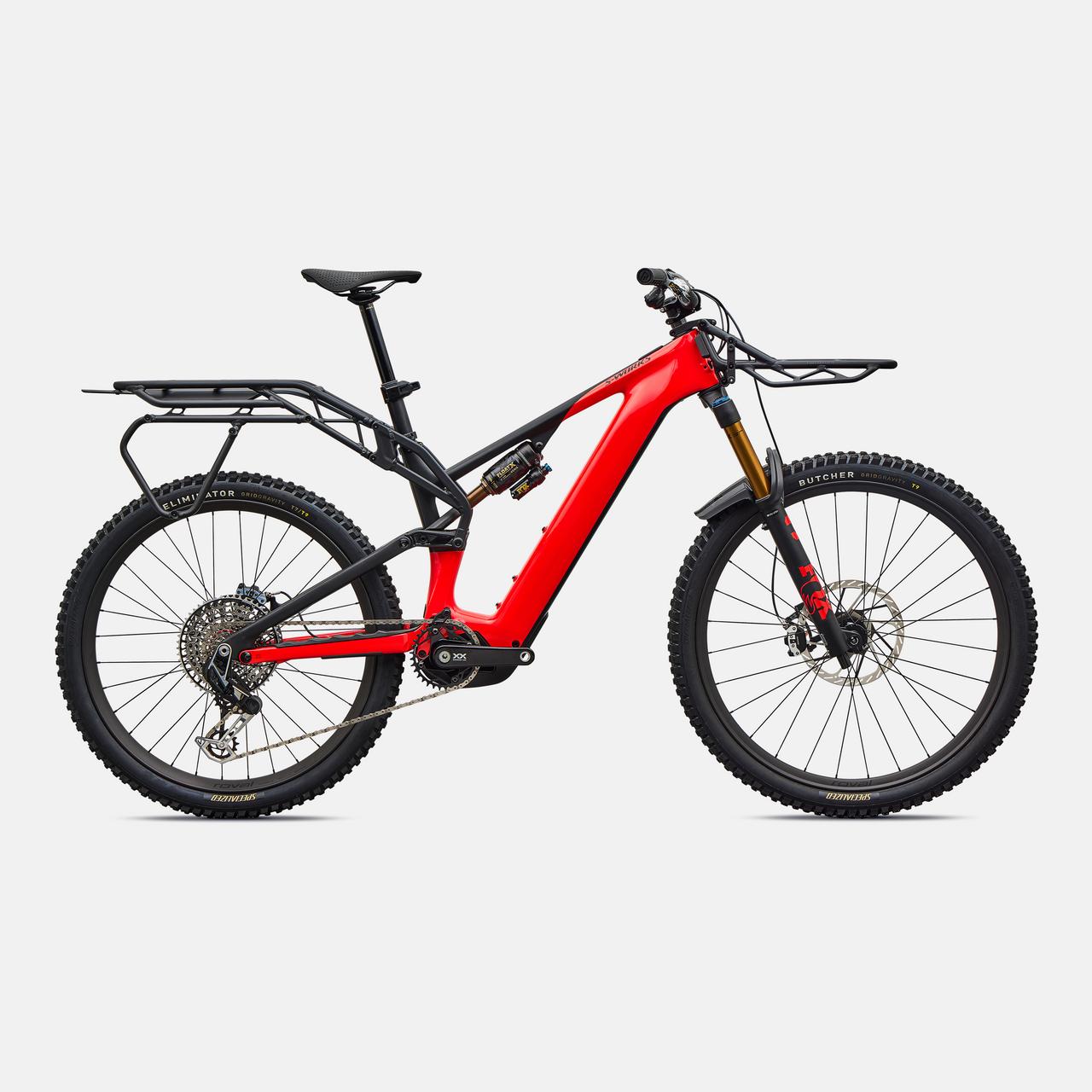

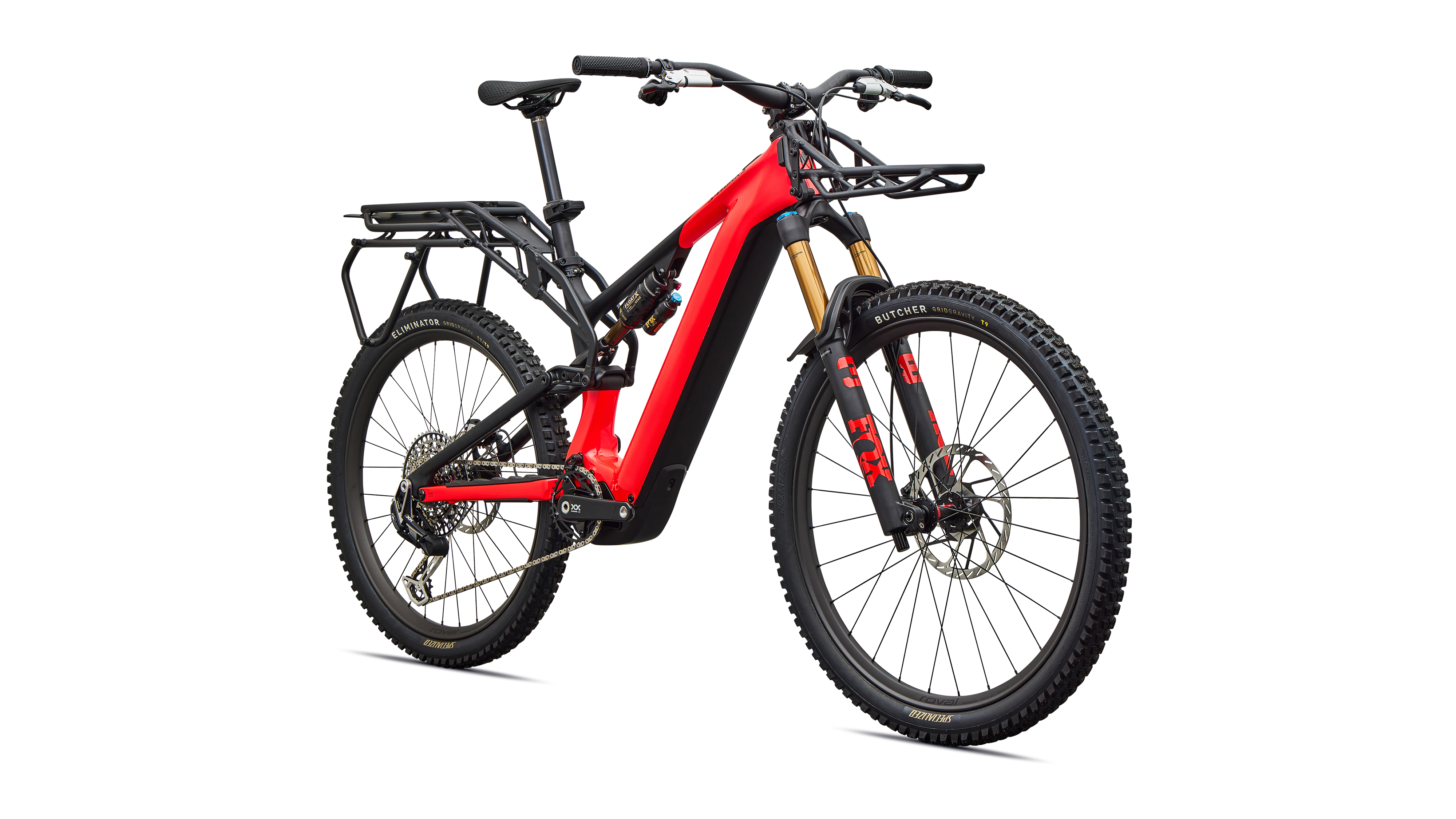

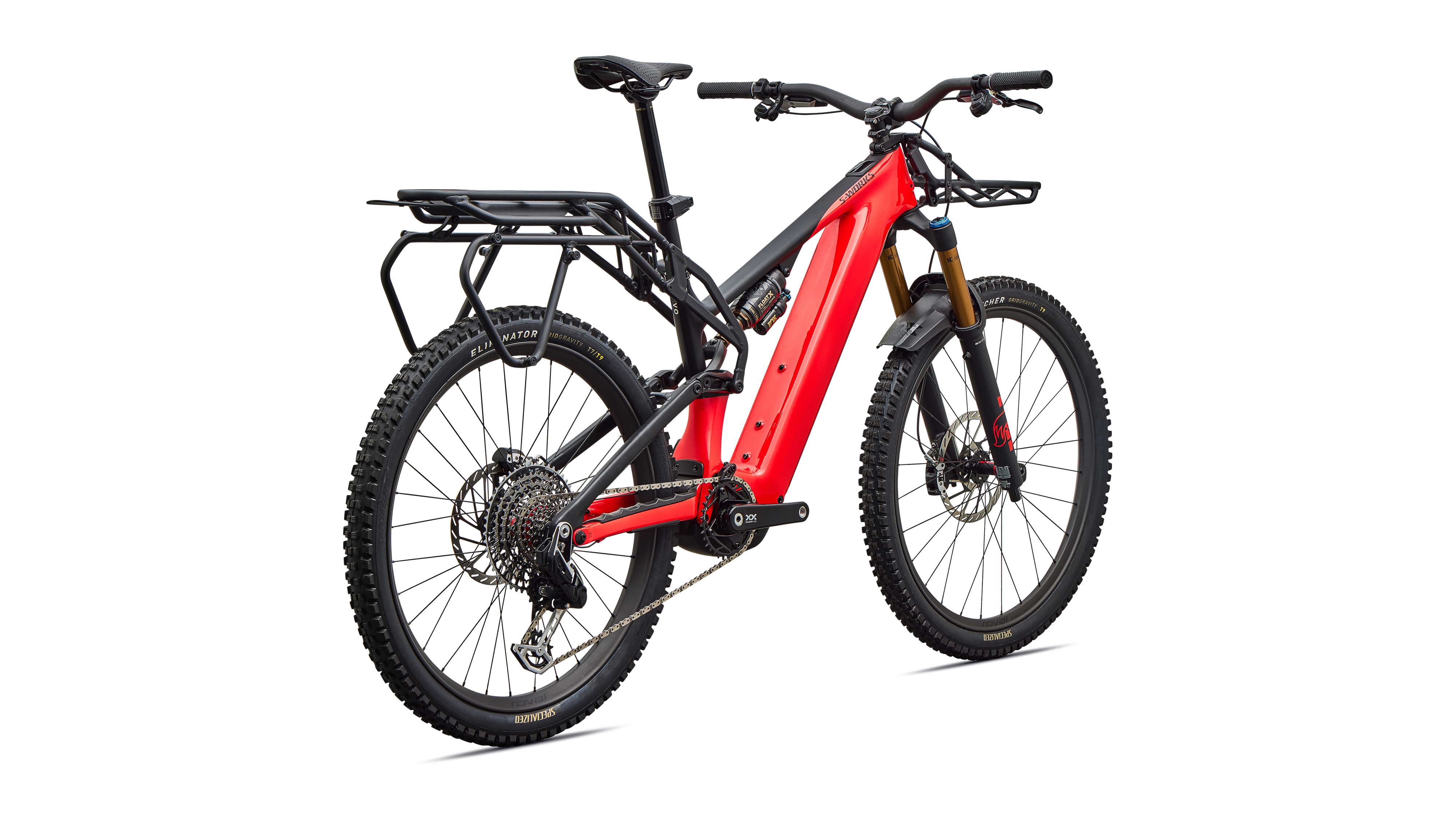

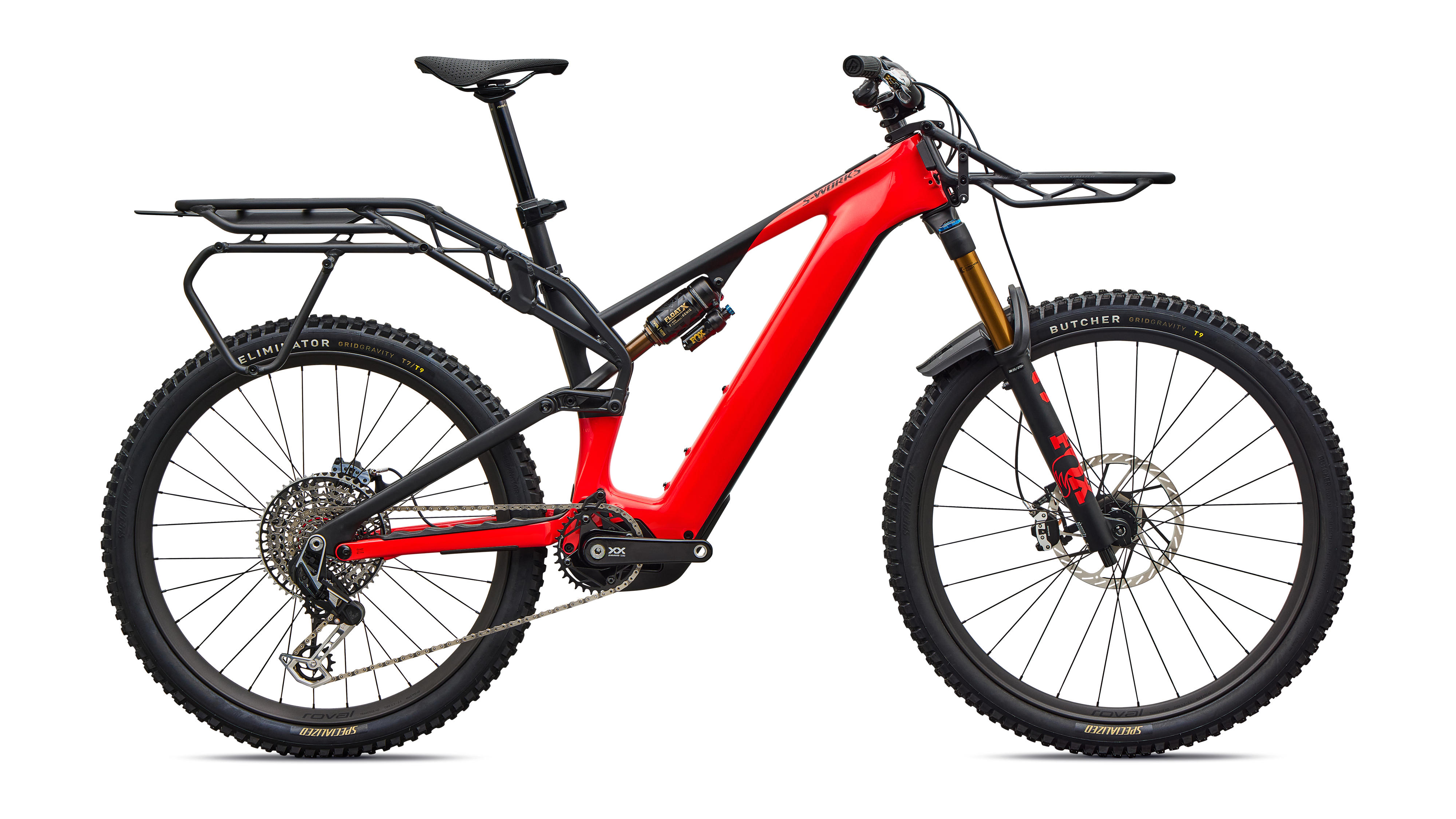

Specialized S-Works Levo 4 X

Levo 4 X is more than a new bike. It's the birth of Electric Overland. Built on the award-winning SuperNatural power, control, and range of Levo 4, it adds high-performance carrying capacity so you can rip singletrack, cross town, cross continents, and turn every ride into an adventure. It's your full-bore, ride-anywhere freedom machine.

• Use - Electric Overland
• E-System - S-Works 3.1 Motor w/ 850 Watts & 111 Nm, 840 Wh battery, up to 4.40 hour range
• Frame - FACT 11m Carbon, Geo Adj & SWAT Storage
• Suspension - Front: 160mm FOX 38 FACTORY GRIP X2
Rear: 150mm GENIE
• FOX FLOAT X Factory
• Drivetrain - SRAM XX Eagle T-Type AXS

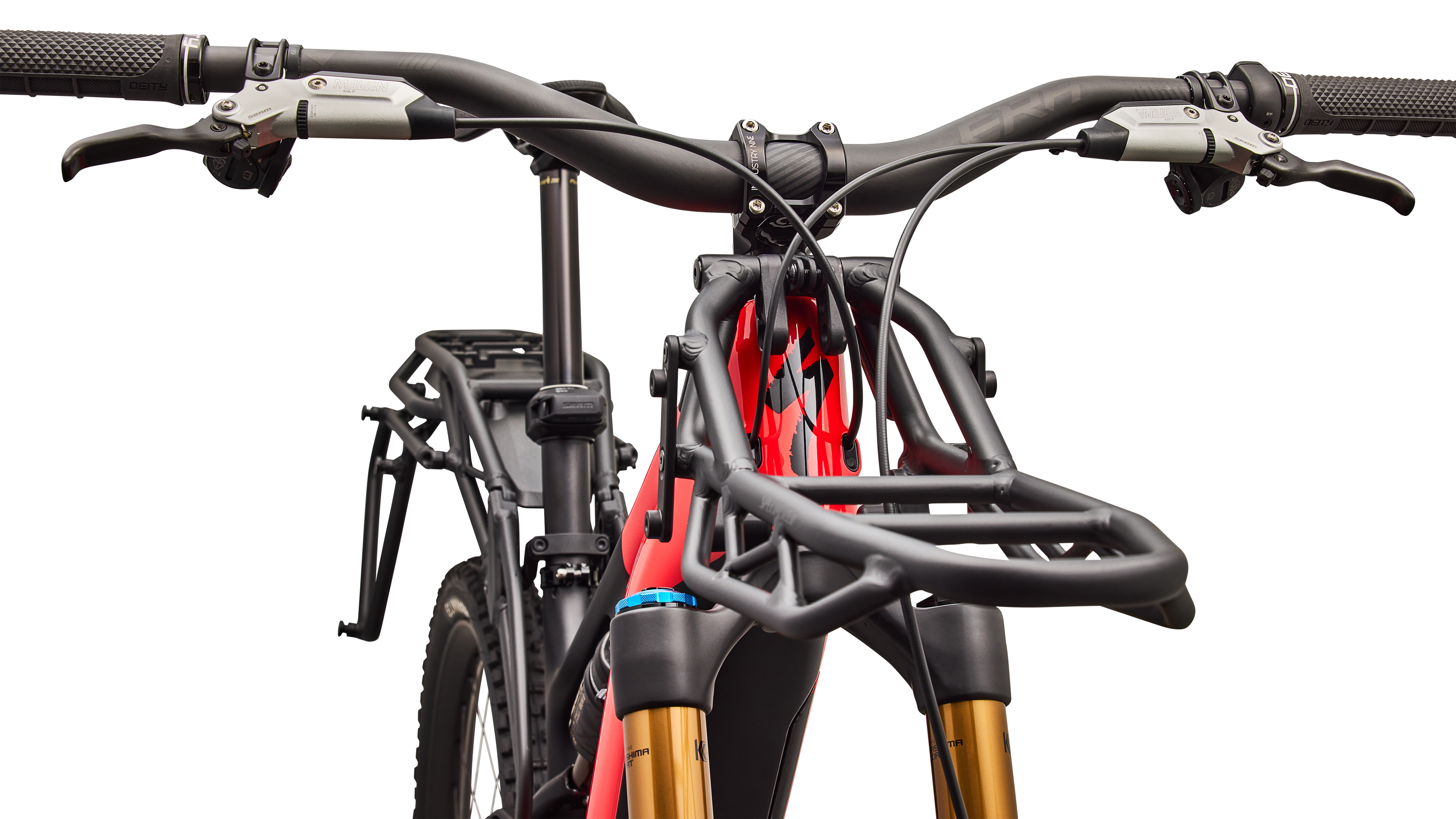

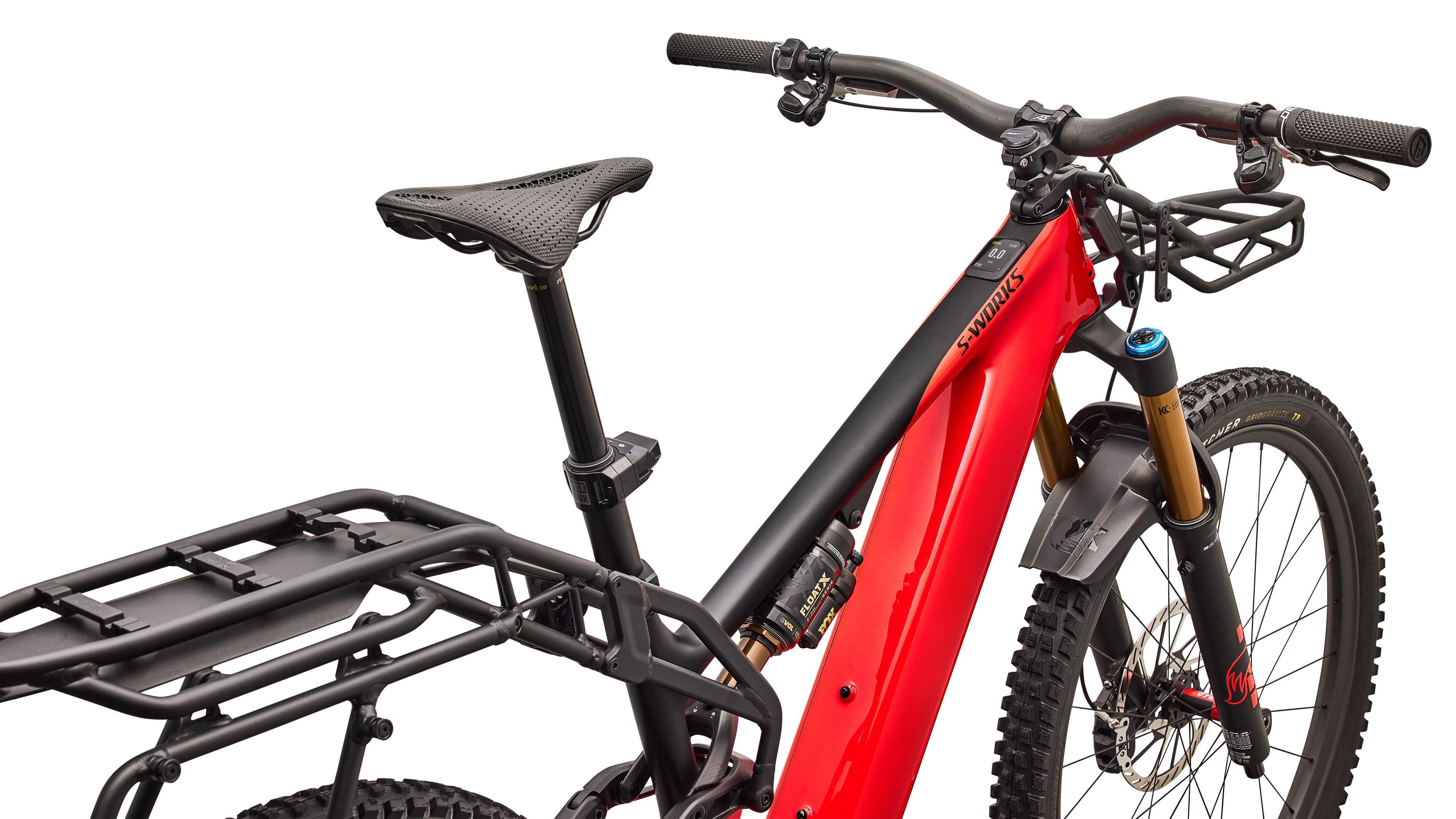

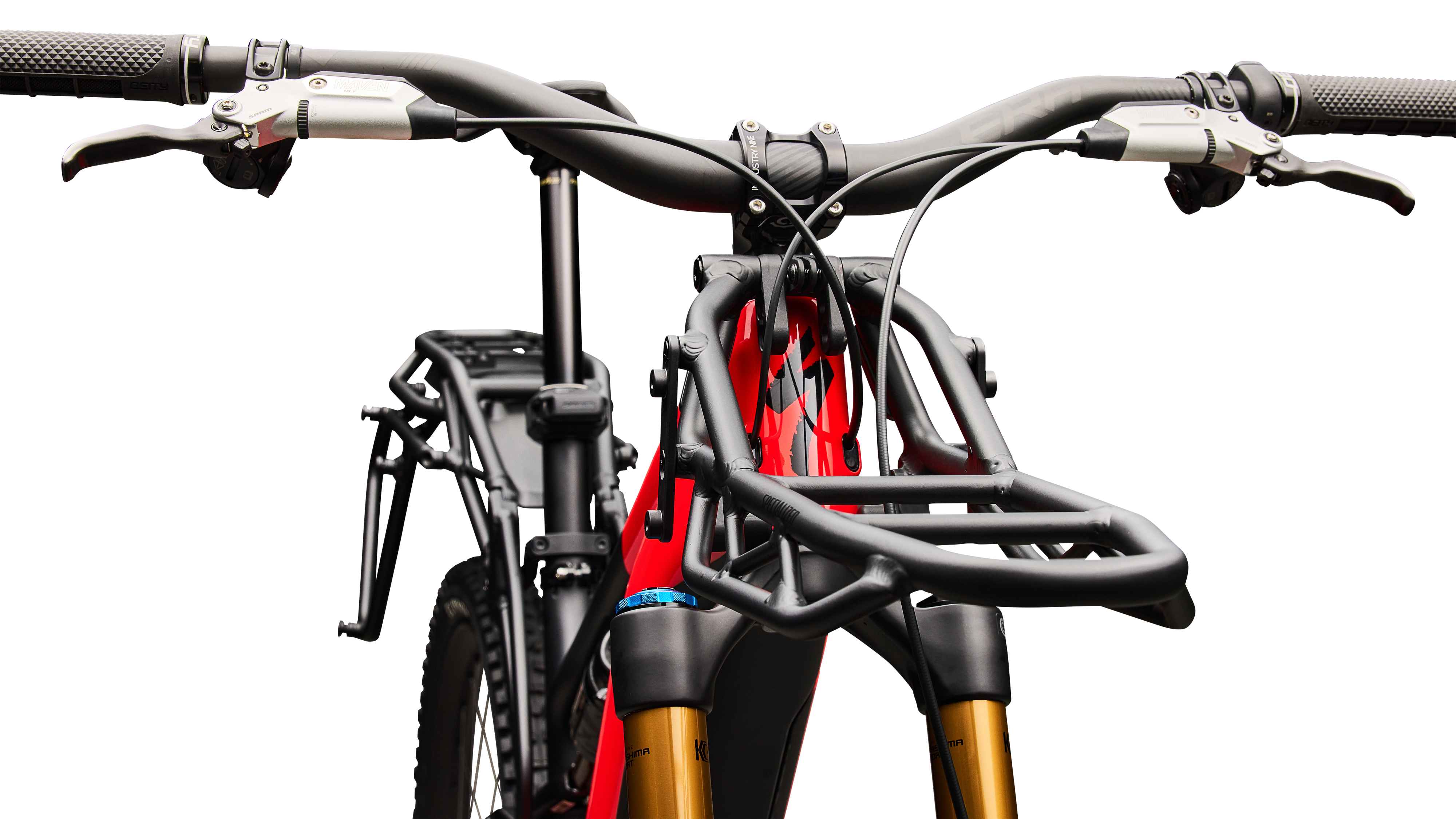

• Carrying Capacity - Front and Rear High-Performance Racks


Cassette

SRAM XX Transmission, XS 1297, 10-52t

Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80%

Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80%

Crankset

SRAM XX Carbon crank, 160mm, ISIS interface

SRAM 34t T-Type chainring, 104 BCD, steel

SRAM XX, T-Type

Fork

FOX Factory 38, GRIP X2 damper, high/low speed compression adjust, high/low speed rebound adjust, 15x110mm axle, 44mm offset, 160mm travel

Frame

Levo 4 carbon frame, 150mm travel, w/SWAT storage, side entry battery, fork travel up to 180mm, adjustable head angle, BB height, chainstay length

Front Brake

SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 220mm HS2 Rotor

Butcher, GRID Gravity, T9, TLR, 29x2.4"

Butcher, GRID Gravity, T9, TLR, 29x2.4"

Front Wheel

Roval Traverse HD 29", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 Hub, 15 x 110mm, 28h

Handlebars

RaceFace Era Carbon Handlebars, 35mm clamp, back-sweep 8-degrees, up-sweep 5 degrees, 800mm width, S1/S2: 40mm rise, S3-S6: 55mm rise

Deity Lockjaw, Lock On, 32mm OD, 133mm Length, Black

Motor

Specialized 3.1 S-Works motor, 111Nm power, 850W power

840Wh battery

Rear Brake

SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor

Rear Derailleur

SRAM XX Eagle Transmission Derailleur

Rear Shock

Fox Float X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment, 210x55mm

Rear Tire

Eliminator, GRID Gravity casing, Gripton T7/T9 compound, 27.5X2.4

Rear Wheel

Roval Traverse HD 27.5", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 Hub, 12 x 148mm, 32h

Saddle

Specialized S-Works Power Mirror, Ti Rails, 143mm/155mm

Seat Post

RockShox Reverb AXS, 34.9mm, S2: 125mm, S3: 150mm, S4-6: 200mm
