New arrival

BLT KIT, MY22 LEVO FSR (GEN.3), MOTOR MOUNTING HARDWARE KIT (V2)

SKU: S240500004
$120.00

Pickup available at 301 Queen St

Usually ready in 24 hours
Description

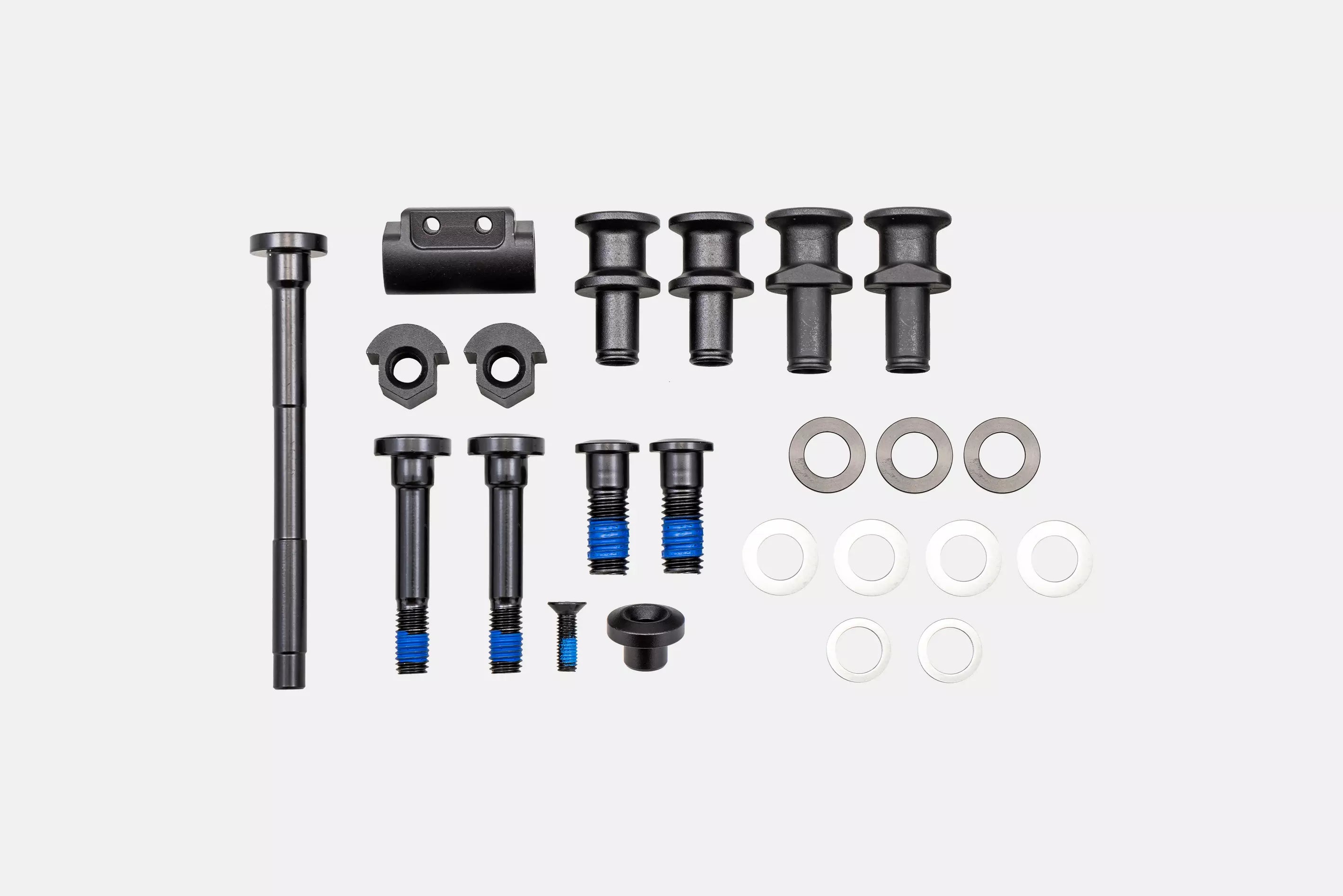

Motor mounting hardware kit with all bolts, washers, and spacers required for both Alloy and Carbon frame Gen.3 Levo bikes. This newer kit includes three 1.5mm thick alloy washers required for Alloy frame bikes that were not included in the original hardware kit S210500010. It will be normal to have three left over washers after using this kit: Alloy frames - you will have Qty 3 of the 18mm OD x 10.5mm OD x 0.2mm Thick washers left over. Carbon frames - you will have Qty 3 of the 18mm OD x 10.5mm OD x 1.5mm Thick washers left over.
  • Rear Mounting Bolts (Qty 2): M10x1.5Px28mm Length
  • Rear Mounting Bolt Washers (Qty 2): 15mm OD x 10.6mm ID x 0.2mm Thick
  • Center Mounting Bolts (Qty 2): M8x1.25Px50mm Length
  • Center Mounting Wedge Nuts (Qty 2): M8x1.25P
  • Center Mounting Frame Spacers: 20mm OD x 8.2mm ID x 17.6mm Length
  • Driveside Forward Axle Bolt (Qty 1): M5x0.8Px16mm Length
  • Driveside Forward Axle Spacer (Qty 1): 10.2mm OD x 7.4mm ID x 12.5mm Thick
  • Non-Driveside Forward Mounting Axle (Qty 1): M8x100mm Length
  • Forward Mounting Frame Spacers (Qty 2): 20mm OD x 8.2mm ID x 17.6mm Length
  • Forward Mounting Wedge (Qty 1): 35mm Width with M4x0.7P Threads
  • Mounting Bolt Washers (Qty 4): 18mm OD x 10.5mm OD x 0.2mm Thick. Used for the DS Center Bolt on all frames. On Carbon frames also used for the Forward Axle, Forward Axle Spacer, and NDS Center Bolt.
  • Alloy Frame Bolt Washers (Qty 3): 18mm OD x 10.6mm ID x 1.5mm Thick. Used for the Forward Axle, Forward Axle Spacer, and NDS Center Bolt.
