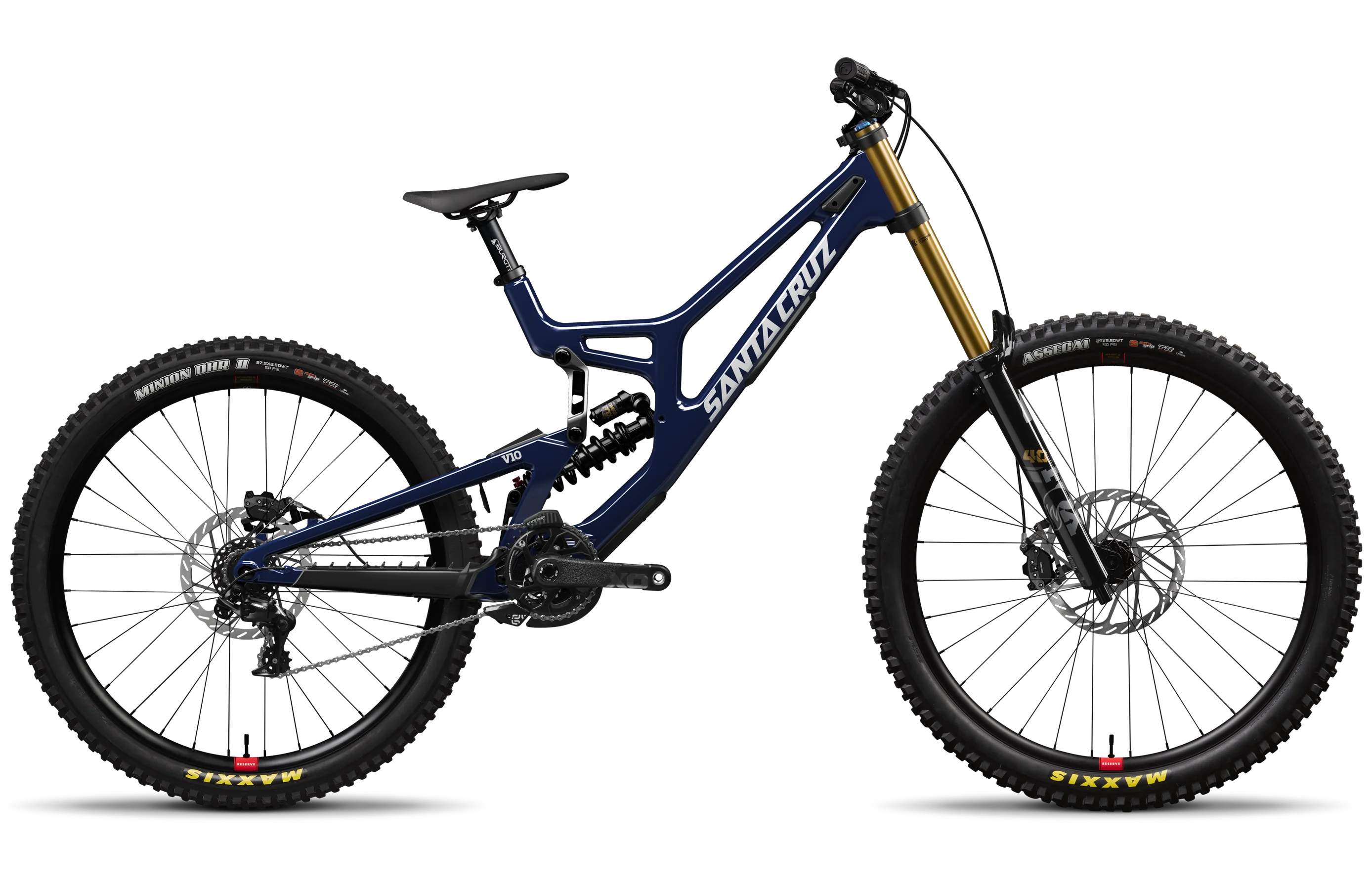

Santa Cruz V10 DH X01

SKU: 58-27296-383-2-927-283401
Regular price $15,499.00

The V10 is the same bike ridden by the Syndicate to World Cup victories. Fully refined, not redefined, the new V10 is for riders looking to just imitate their heroes on Sunday afternoon or find the best lines in the bike park...

Colour: Gloss Liquid Blue
Size
Description

The V10 is the same bike ridden by the Syndicate to World Cup victories. Fully refined, not redefined, the new V10 is for riders looking to just imitate their heroes on Sunday afternoon or find the best lines in the bike park. The kind of rider who knows there’s no replacement for a proper downhill bike. Lap after lap, day after day nothing stands up to the abuse or gives the thrills a downhill bike can. Nothing.

  • Carbon CC Frame
  • NEW FOX 40 Factory
  • Fox DHX2 Factory
  • SRAM Maven Silver
Technical Specifications

Frame

Material

Carbon CC

Frame

Carbon CC
MX 208mm Travel VPP™

Travel

208mm

Weight

37.10 lbs
/ 16.83 kg

Wheel Size

MX/29"

Suspension

Fork

FOX 40
Float Factory, Grip X2, 203mm

Shock

Fox DHX2
Factory S: 450lb, M: 500lb, L: 550lb, XL: 600lb

Drivetrain

Bottom Bracket

SRAM DUB
83mm Threaded BB

Cassette

SRAM X01
DH, 7spd

Chain

SRAM
PC1170, 11spd

Chainguide

E13 LG1+
Chainguide

Crankset

SRAM X01
DH, DUB 83, 36t All Sizes: 165mm

Rear Derailleur

SRAM X01
DH, 7spd

Right Shifter

SRAM X01
DH

Brakes

Brakes

SRAM
Maven Silver

Front Rotor

SRAM HS2
220mm

Rear Rotor

SRAM HS2
200mm

Cockpit

Grips / Bar Tape

Burgtec
Bartender Pro Grip

Handlebars

OneUp
Aluminum Bar, 35mm (Size S: Burgtec RW Alloy DH Bar, 31.8) S: 800mm, 15mm
Rise, M/L/XL: 800mm, 35mm Rise

Headset

Cane
Creek 50 IS41 Headset 1-1/8"

Saddle

Fizik
Alpaca Gravita X5 Saddle

Seatpost

Burgtec
Aluminum Post, 31.6 All Sizes: 300mm

Stem

OneUp
Direct Mount Stem

Wheels

Front Rim

Reserve
30|HD AL 6069

Front Hub

Industry
Nine 1/1, 20x110 Boost, 32h -or- DT Swiss 350, 20x110 Boost, 32h

Front Tire

Maxxis
Assegai 29"x2.5", 3C MaxxGrip, DH

Rear Rim

Reserve
30|HD AL 6069

Rear Hub

Industry
Nine 1/1, 12x157, XD, 32h -or- DT Swiss 350, DEG DF, 12x157, XD, 32h

Rear Tire

Maxxis
Minion DHR II 27.5"x2.5", 3C MaxxGrip, DH

Valves

Reserve
Fillmore Valves

Specs

Headset

IS41
upper/ IS41 lower (Reach Adjust)

Fork Offset

52mm

Suspension System

VPP

Rear Travel

208mm

Recommended Sag

30%

Shock Length

250mm

Shock Stroke

75mm

Shock Bushing Size Front

30x8

Shock Bushing Size Rear

30x8

Bottom Bracket Shell

Threaded
83mm

Max Chainring Size

36t

Front Derailleur Mount

None

Chainguide Standard

ISCG05

Rear Spacing

157mm

Rear Brake Mount

200mm or
220mm PM

Max Rotor Size

220mm

Max Tire Clearance

May vary according to tire and rim model

2.5"

Seat Clamp Diameter

36.4mm
